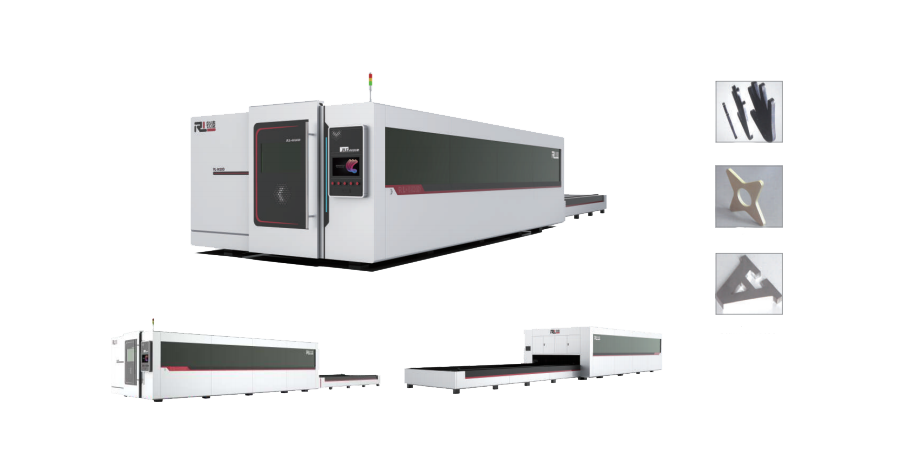

Double platform laser cutting machine


Functional features

®High-rigidity and heavy-duty machine tools, innovative gravity-wrapped ultra-high-power dedicated full-hollow bed, no square-through connection in the middle, no obstruction of the cutting area, no high-temperature broiling, no burning, and more durable.

®Imported high-performance lasers can continuously cut carbon steel, stainless steel, aluminum, copper, galvanized sheet and other metal materials and high-reflection materials, realizing high-precision cutting of various metal plates.

®The beam adopts the fourth-generation aviation aluminum beam with light weight and good dynamic performance.The honeycomb compression design has strong resistance to deformation.Extrusion molding process, no pores, no trachoma, high strength and more durable.

®Equipped with imported high-precision linear guides, high-precision reducers, gear integrated parts, grinding racks and high-efficiency transmission mechanisms with high precision and high precision, to ensure the long-term high-precision operation of the equipment;


Range of application

Widely used in food machinery, kitchenware and bathroom, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, automobiles, decorative advertising, aerospace, shipbuilding, engineering machinery, locomotives, agricultural and forestry machinery, electrical manufacturing, petroleum machinery, lasersMachinery manufacturing and processing industries of various large and small steels such as foreign processing services……


Performance parameter

Product numberRL6020-DRL6025-DRL8025-D
Cutting range2000*6000mm2500mm*6000mm2500mm*8000mm
Power range6000w-20000w
Precise positioning±0.03mm/m
Maximum acceleration120m/min
Equipment power demand380V 50HZ/60HZ
Equipment area14500mm*3600mm*2300mm14500mm*4060mm*2300mm18500mm*4060mm*2300mm
  Exchange formHave (horizontal exchange)
Maximum cutting gas pressure3MPA

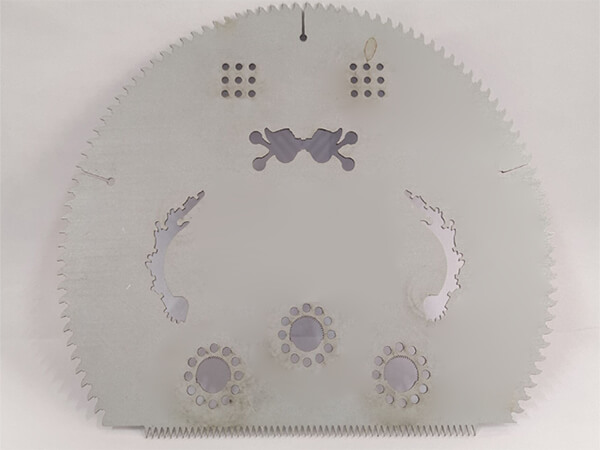

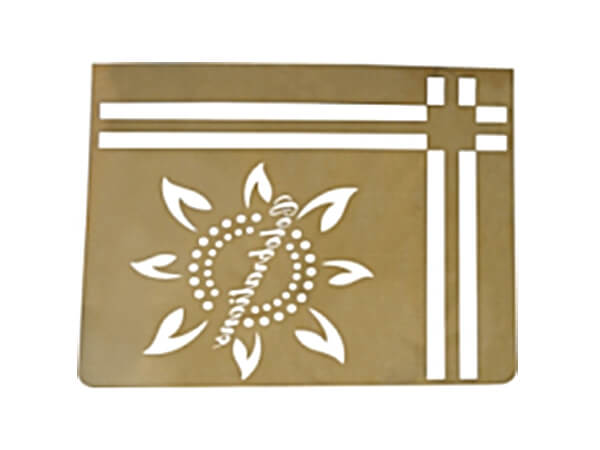

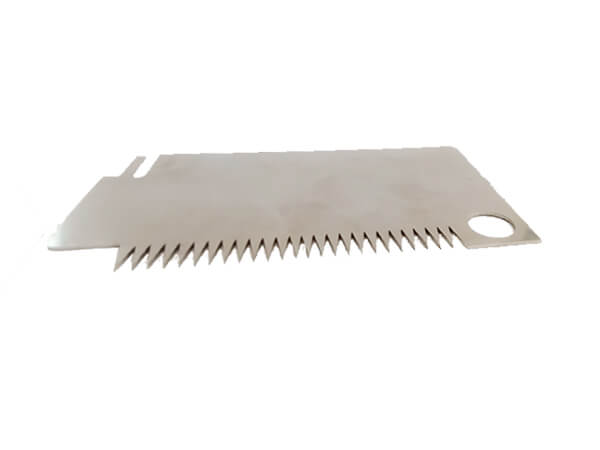

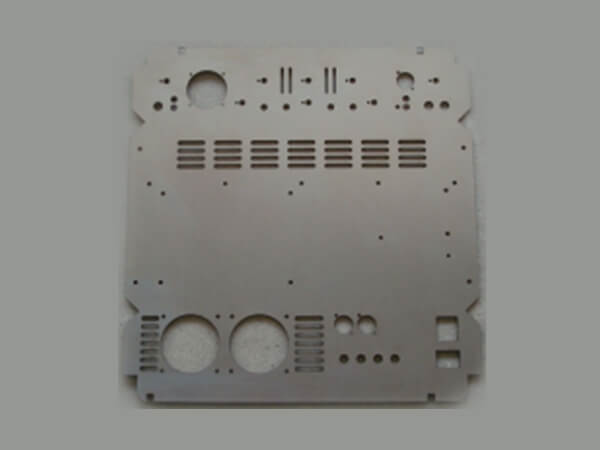

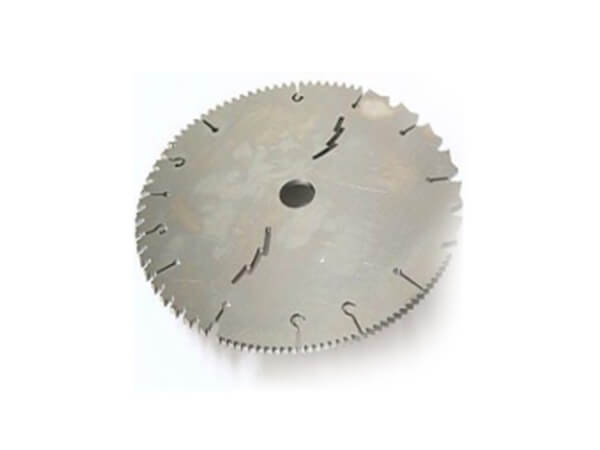

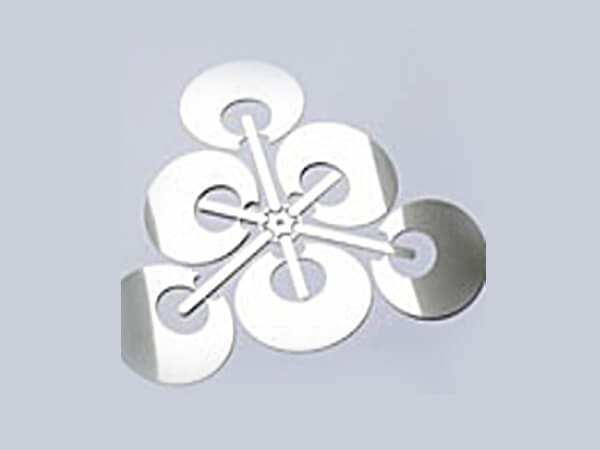

Cutting Figure
Industry Application
