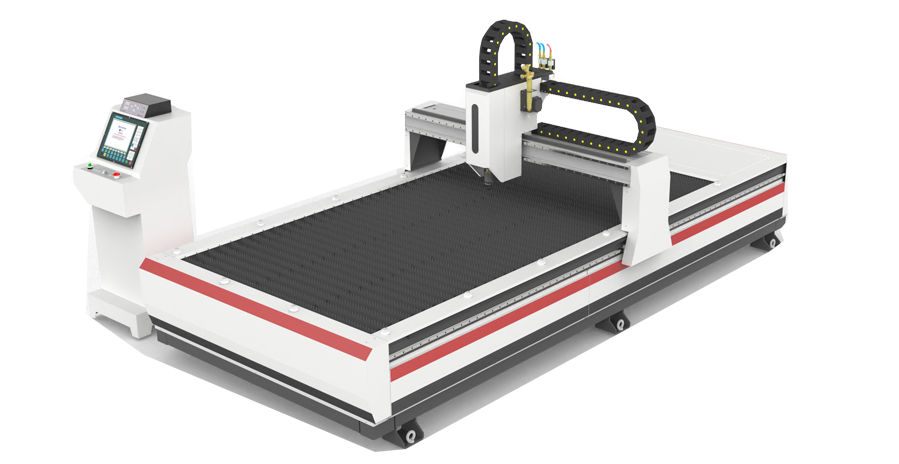

Desktop CNC plasma flame cutting machine


Product parameter

TitleDesktop cutter
Model SpecificationsTNC-1325TNC-1530TNC-1840
Input voltageSingle-phase AC 220V±10%  50-60Hz  1.0KW, Plasma three-phase AC 380V
Input powerStepping (1200W)/servo(2000W)
Cutting typePlasma cutting(with plasma power supply)/Flame cutting/Plasma cutting+Flame cutting
Width of equipment(mm)190021002300
Length of equipment(mm)350040005000
Customized informationLongitudinal length (effective cutting length Y-axis)can be increased or shortened according to user requirements
Effective cutting range mm1300*25001500*30001800*4000
Cutting torch lift strokemm200
Number of cutting torchPlasma 1 set or flame 1 setPlasma 1 set or flame 1 setPlasma 1 set or flame 1 set
Number of moving bodies1 set of the standard、Selection(up to 2 sets)
Plate cutting thicknessDepending on plasma power、flame 6-150 mm
Running Speed 0—10000mm/min
Cutting speed 20—6000mm/min
Driving typeBilateral drivers (Gear rack drive)
Type of motorStandard 86 Series Stepping Motor+reducer(Servo motor selection)
CNC systemShanghai Jiaotong University,Display screen 10-inch industrial control screen
Other Configuration  Lifting pipeline tow chain,Tool set 1
Gas Supply RequirementsThe maximum acetylene pressure or propane pressure does not exceed the 0.1Mpa(Select flame cutting method to need)
Oxygen Supply RequirementsOxygen pressure maximum does not exceed the 0.8Mpa(Select flame cutting method to need)
Upgrade TypeFlame capacitance up:Selection/Plasma arc up:Selection
A moving body can only support one way of raising.(If plasma arc voltage is adjusted high, the flame capacitor should not be adjusted high)
Packaging softwareStandard allocation:FASTCAM  Small Expert Edition/ or  SMARTCUT Software is a set of
Machine size3500*1700*16004000*2000*16005000*2300*1600
Cutting material platformManufacturer provides production(Standard allocation Water cutting material table)Selection:(Exhaust dust cutting material table)

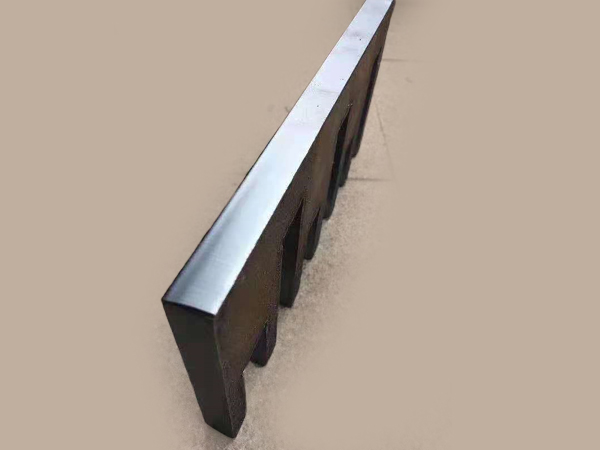

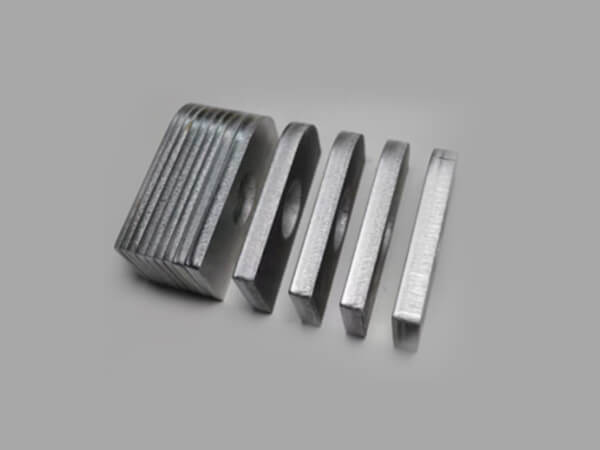

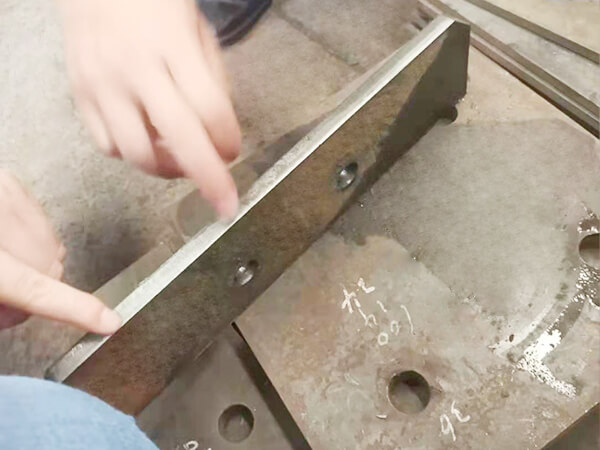

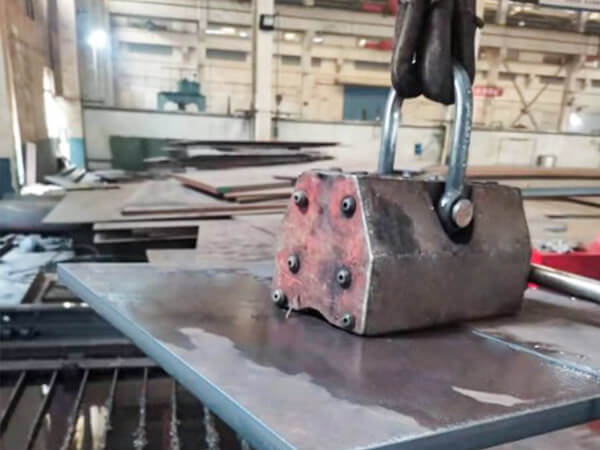

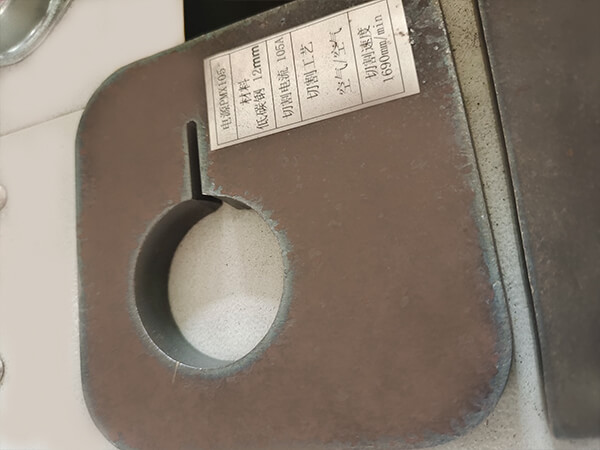

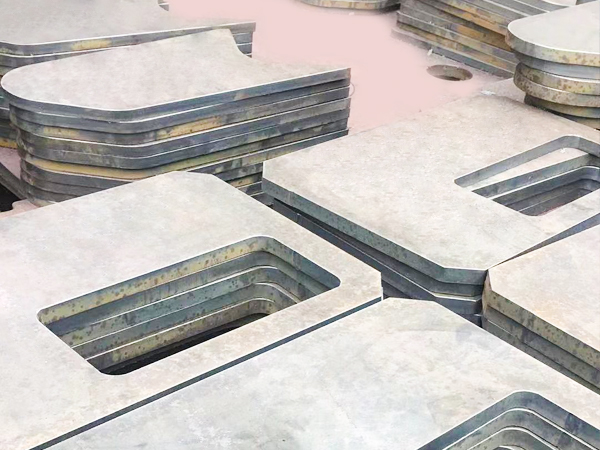

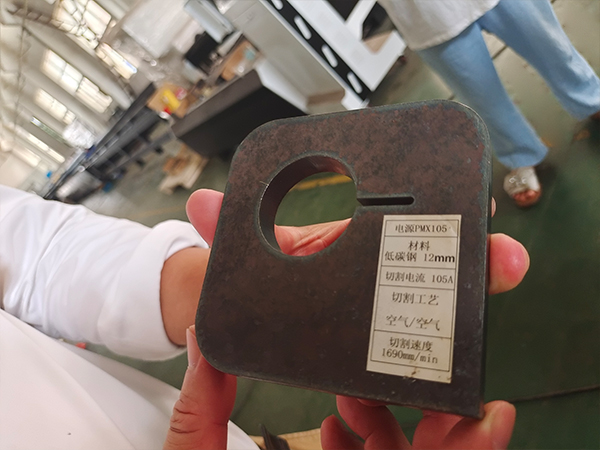

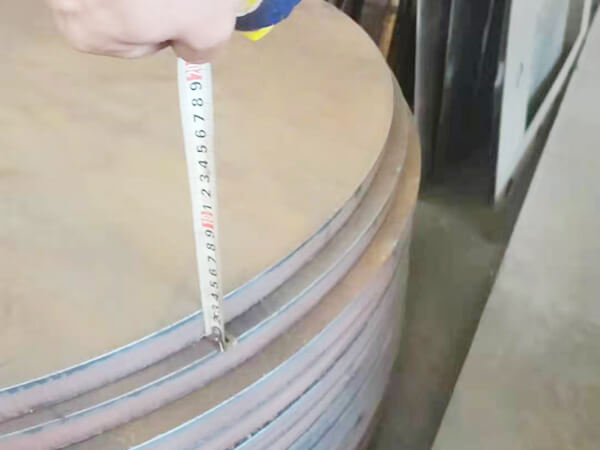

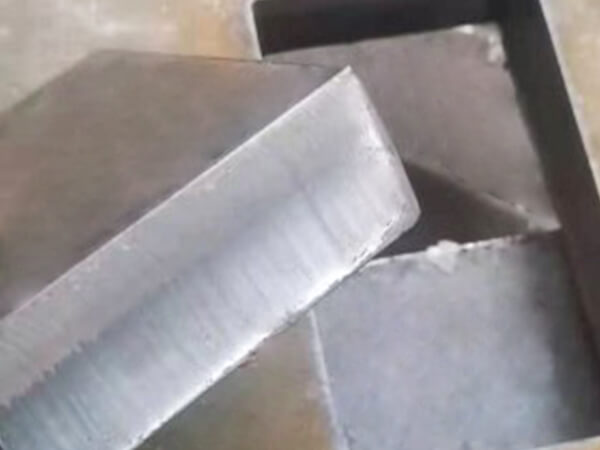

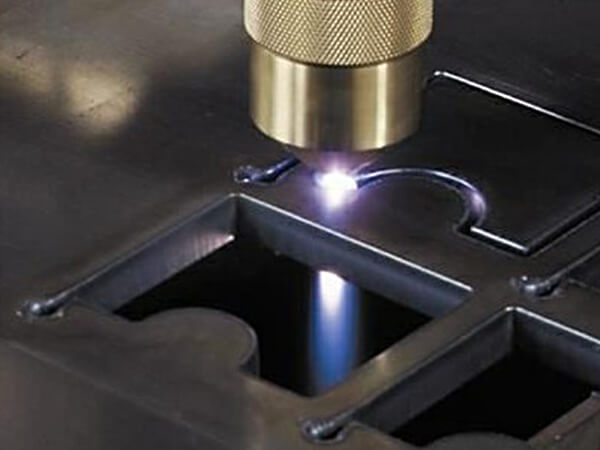

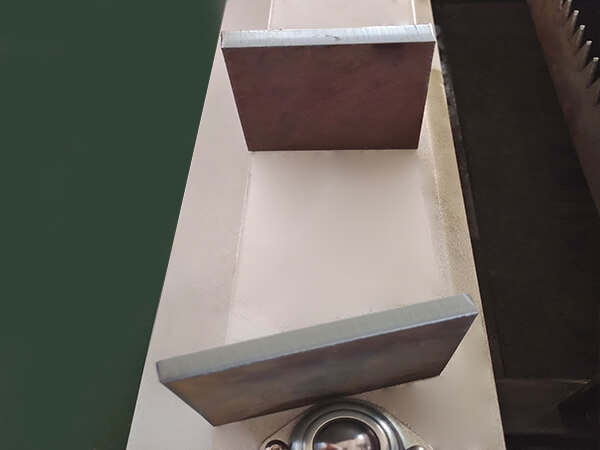

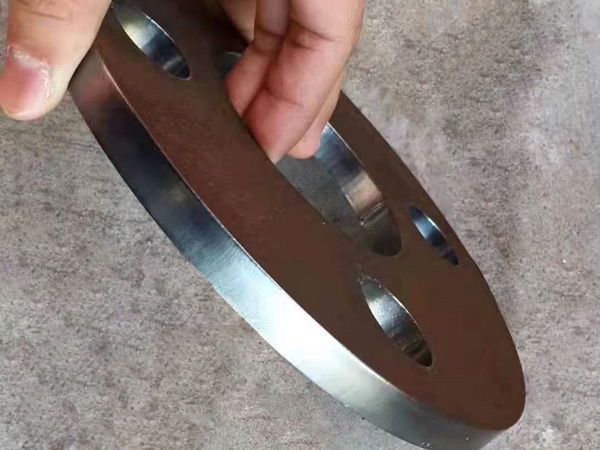

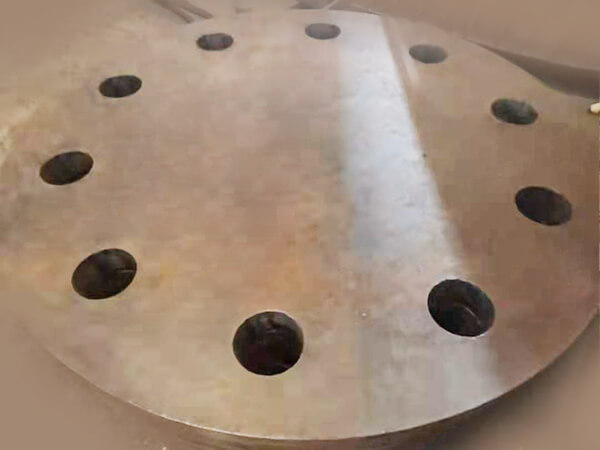

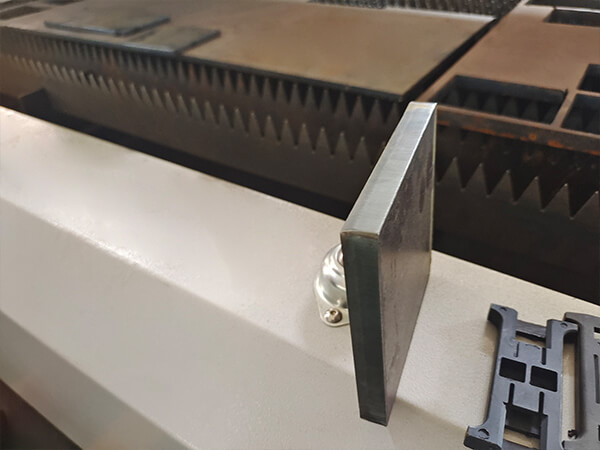

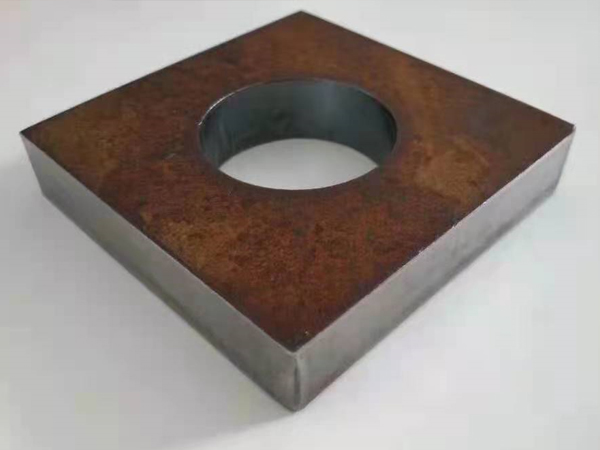

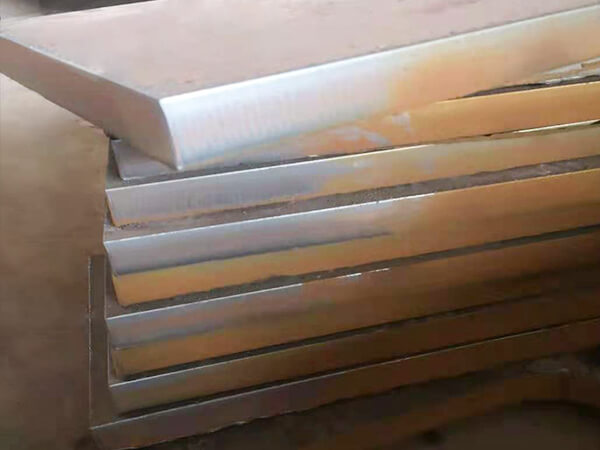

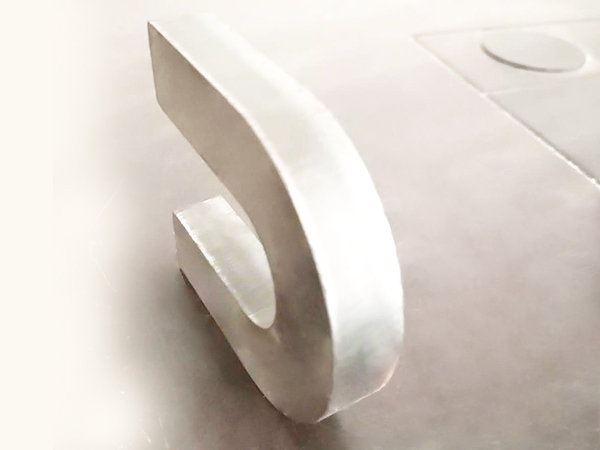

Cutting Figure
Industry Application
