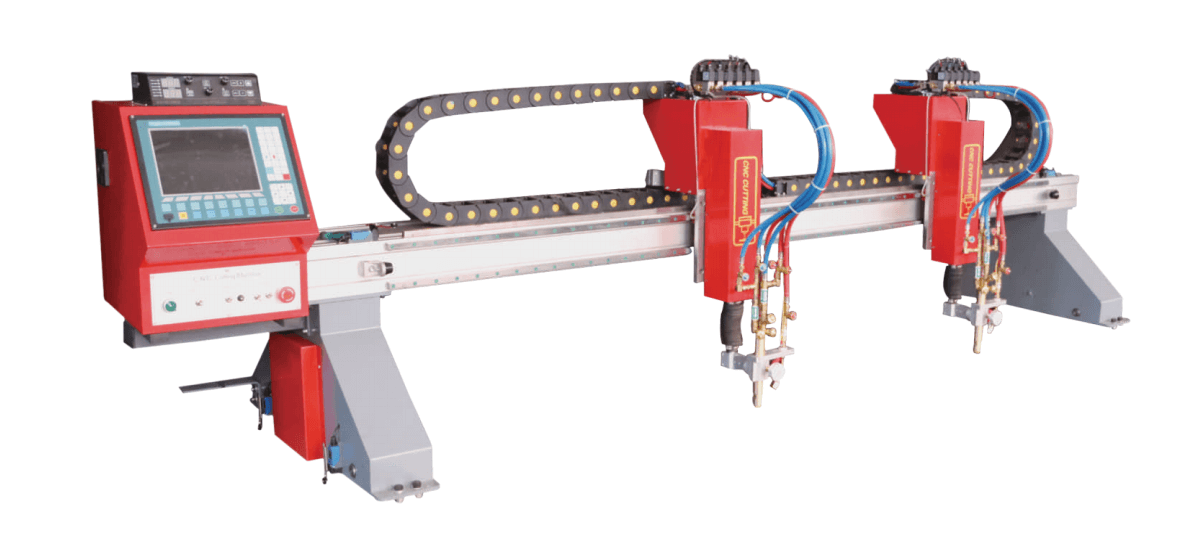

Economical gantry CNC cutting machine



Product parameter

TitleEconomical CNC plasma flame cutting machine
Model SpecificationsSNC-2500SNC-3000SNC-3500
Input voltageSingle-phase AC 220V±10%  50-60Hz  1.0KW, Plasma three-phase  AC 380V
Input powerStepping (1200W)/servo(2000W)
Cutting typePlasma cutting(with plasma power supply)/Flame cutting/Plasma cutting+Flame cutting
CNC spanmm 250030003500
CNC lengthmm5000(Length can be extended according to user needs)
Effective cutting rangemm2000*40002500*40003000*4000
Lifting height of cutting torchmm200
 Cutting torch and quantityPlasma 1 set or flame 1 setPlasma 1 set or flame 1 setPlasma 1 set or flame 1 set
Number of moving bodies1 set of the standard、Selection(up to 2 sets)
Plate cutting thicknessDepending on plasma power、flame 6-150 mm
Running Speed 0—10000mm/min
Cutting speed 20—6000mm/min
Driving typeBilateral drivers (Gear rack drive)
Type of motorStandard 86 series stepping motor + reducer(optional servo motor)
CNC systemShanghai Jiaotong University,Display screen 10-inch industrial control screen
Other Configuration    Lifting pipeline tow chain,Tool set 1
Gas Supply RequirementsThe maximum acetylene pressure or propane pressure does not exceed the 0.1Mpa(Select flame cutting method to need)
Oxygen Supply RequirementsOxygen pressure maximum does not exceed the 0.7Mpa    (Select flame cutting method to need)
Upgrade TypeFlame Capacitance Elevation: Optional/Plasma Arc Voltage Elevation: Optional
A moving body can only support one way of raising.(If plasma arc voltage is adjusted high, the flame capacitor should not be adjusted high)
Packaging software Standard allocation:FASTCAM Small Expert Edition   /or SMARTCUT Software is a set of
Machine Tool Bare Size3230*1000*10003730*1000*10004230*1000*1000
Guide rail foundation、Cutting rackManufacturer provides drawings, the user makes their own drawings

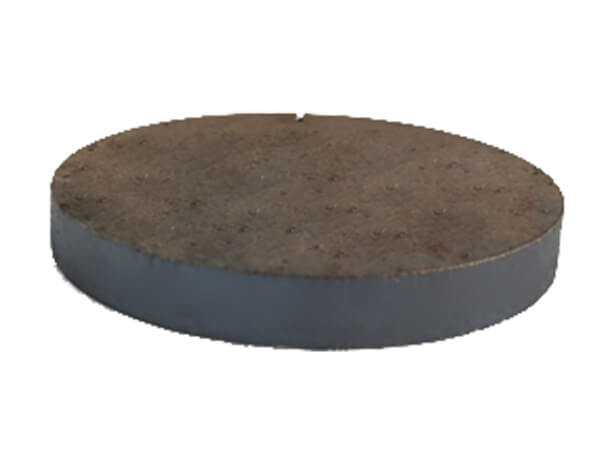

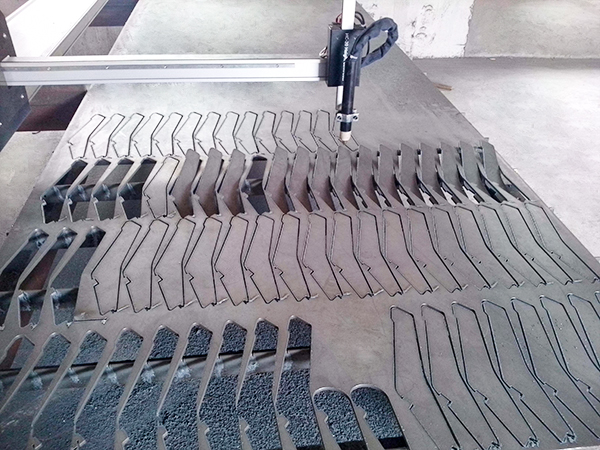

Cutting Figure

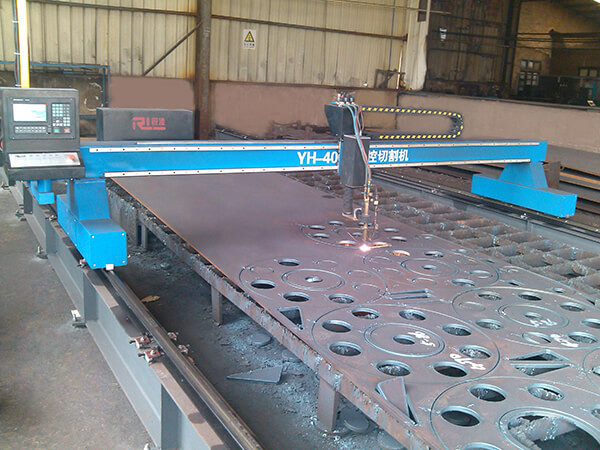

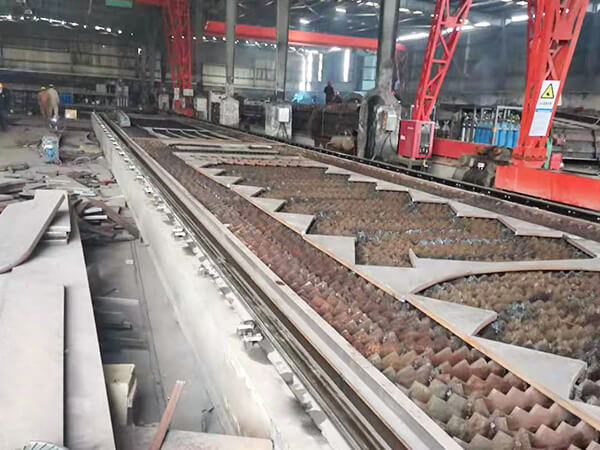

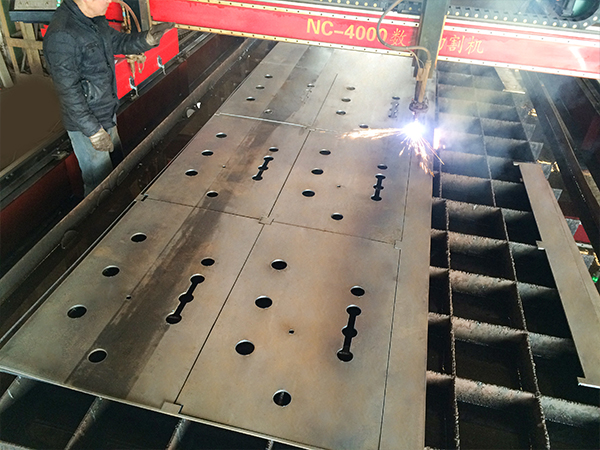

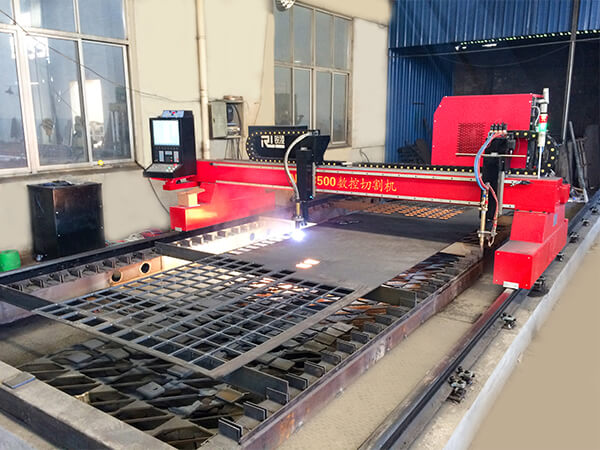

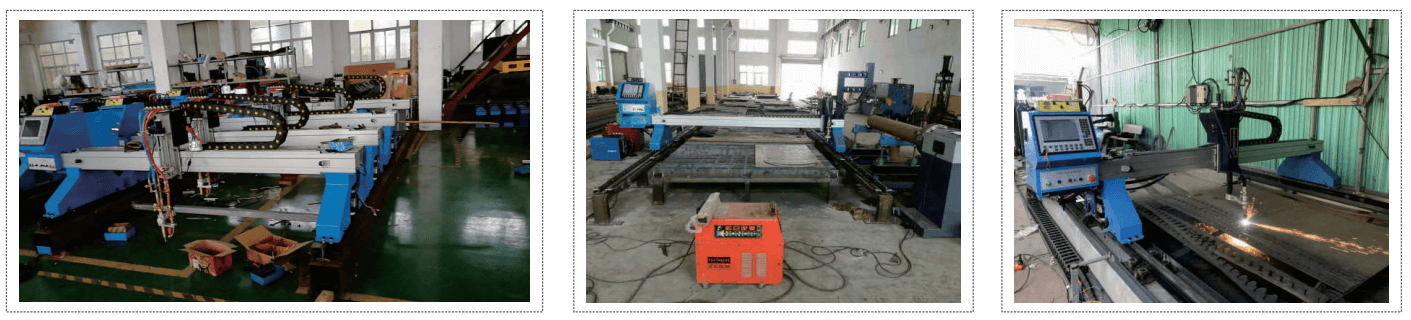

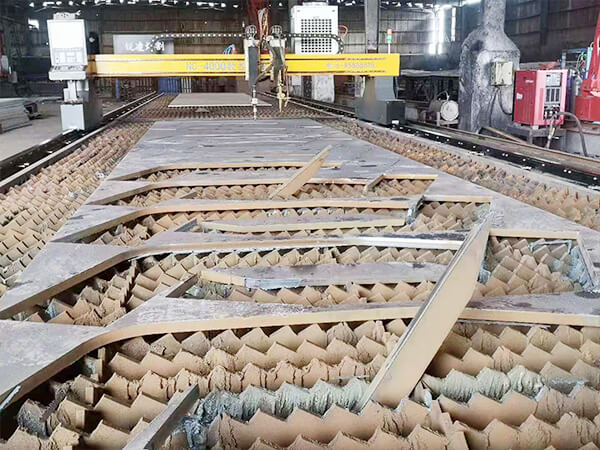

Industry Application
