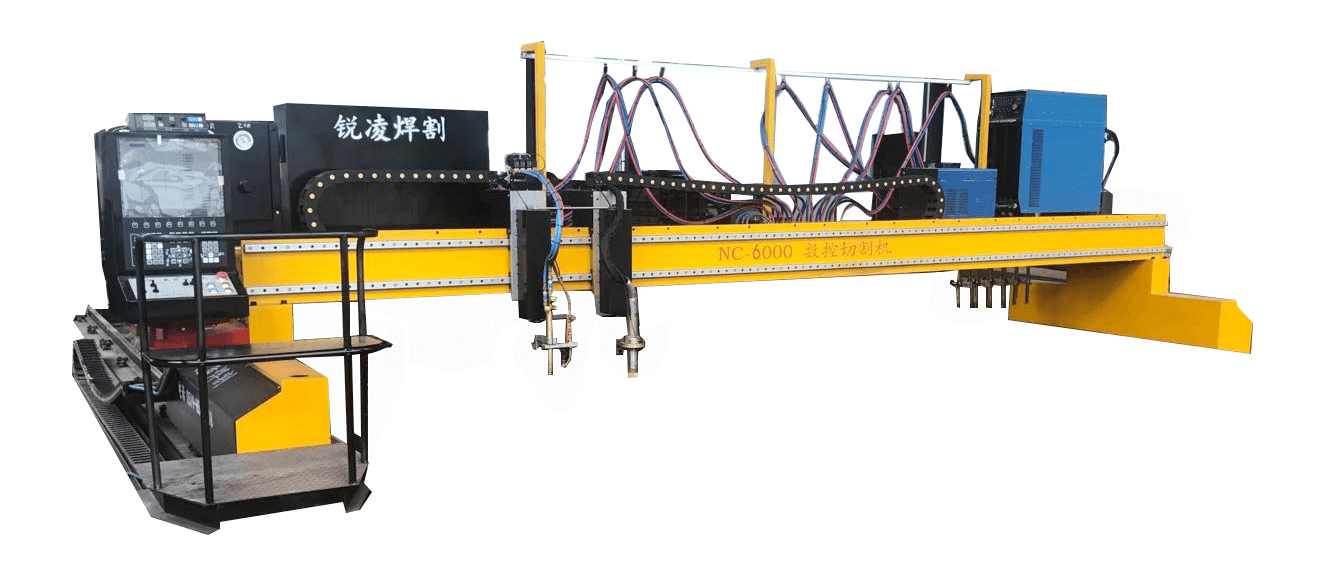

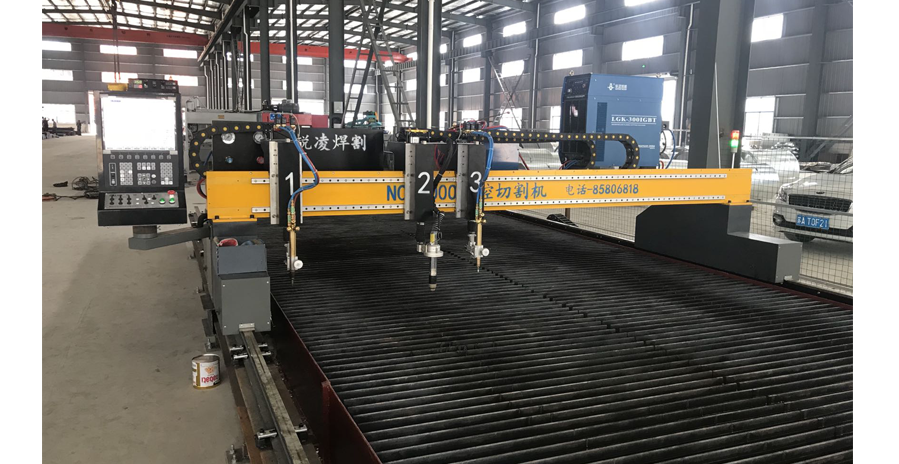

Heavy-duty gantry cutting machine



Product parameter

TitleHeavy gantry cutting machine
Model SpecificationsNC-4000NC-5000NC-6000
Input voltageAC 220V±10%  50-60Hz  2.0KW, Plasma380V
Input powerPlasma cutting(with plasma power supply)/Flame cutting/Plasma cutting+Flame cutting
Cutting type400050006000
CNC spanmm 120001200012000
CNC lengthmm  Longmen transverse longitudinal length can be increased or shortened according to user requirements
Effective cutting rangemm3200*100004100*100005100*10000
Lifting height of cutting torchmm200
Cutting torch and quantity Plasma 1 set、flame 1 setPlasma 1 set、flame 1 setPlasma 1 set、flame 1 set
Number of moving bodies222
Plate cutting thicknessDepending on plasma power、flame6-250 mm
Idle speed 0—10000mm/min
Cutting speed 20—8000mm/min
Driving typeRack drive:Bilateral drivers (Servo motor)
CNC systemShanghai Jiaotong University,Display screen 17-inch industrial control screen
Other ConfigurationLifting pipeline tow chain,Tool set 1
Gas Supply RequirementsThe maximum acetylene pressure or propane pressure does not exceed the 0.1Mpa(Select flame cutting method to need)
Oxygen Supply RequirementsOxygen pressure maximum does not exceed the 0.8Mpa(Select flame cutting method to need)
Upgrade TypeFlame Capacitance Elevation: Optional/Plasma Arc Voltage Elevation: Optional

A moving body can only support one way of raising.(If plasma arc voltage is adjusted high, the flame capacitor should not be adjusted high)
Packaging softwareStandard allocation:FASTCAM  The standard version /or  SMARTCUT  Software is a set of
Machine Tool Bare Size4500*2000*15005500*2000*15006500*2000*1500
Guide rail foundation、Cutting rackManufacturer provides drawings, the user makes their own drawings

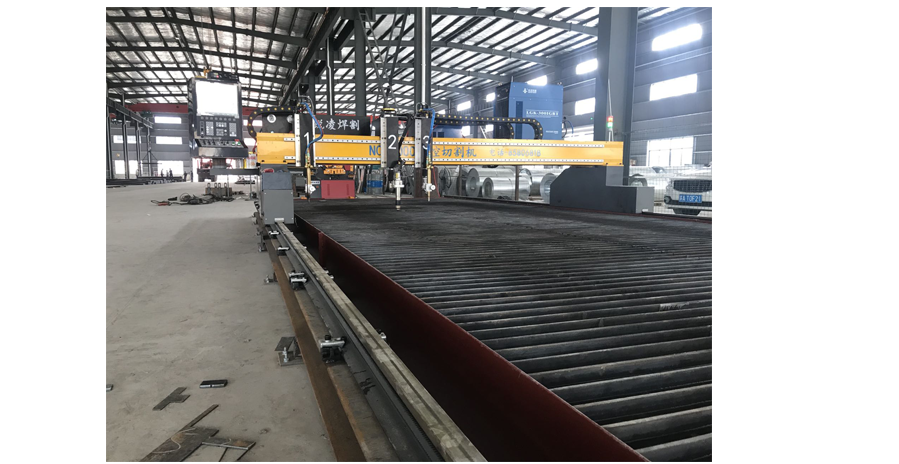

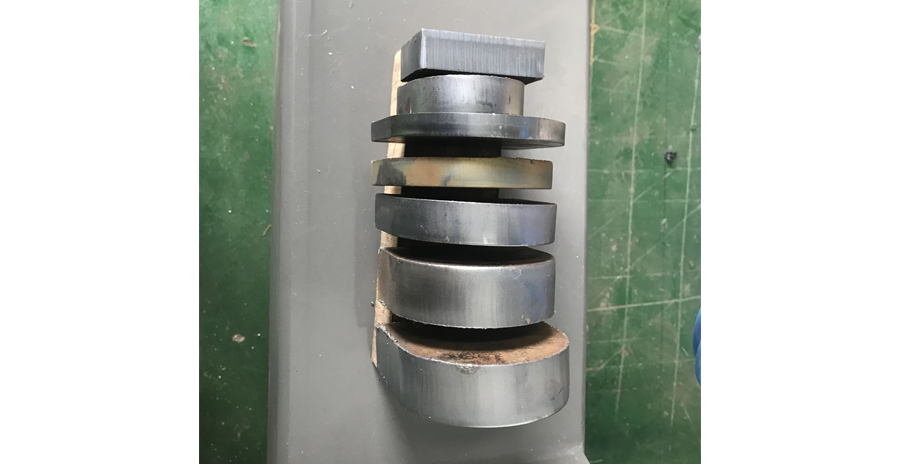

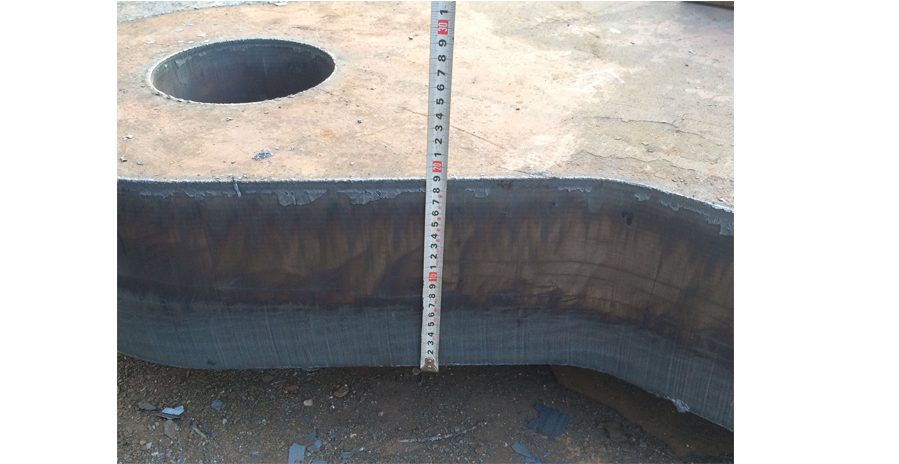

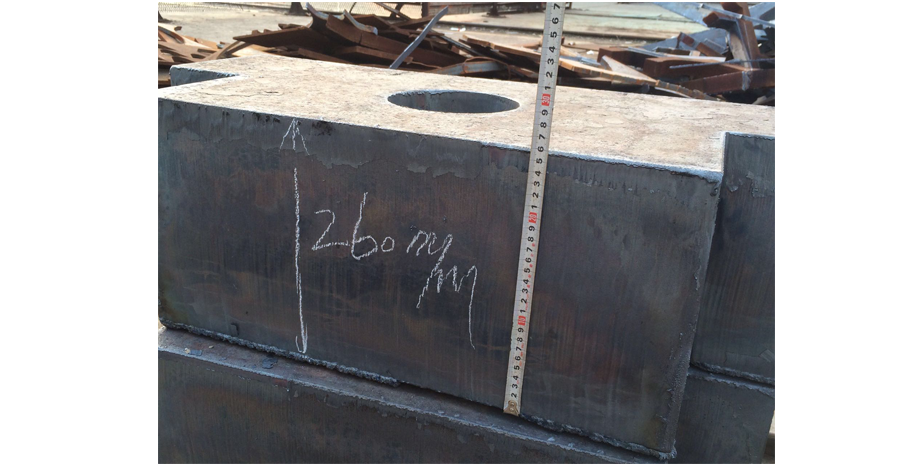

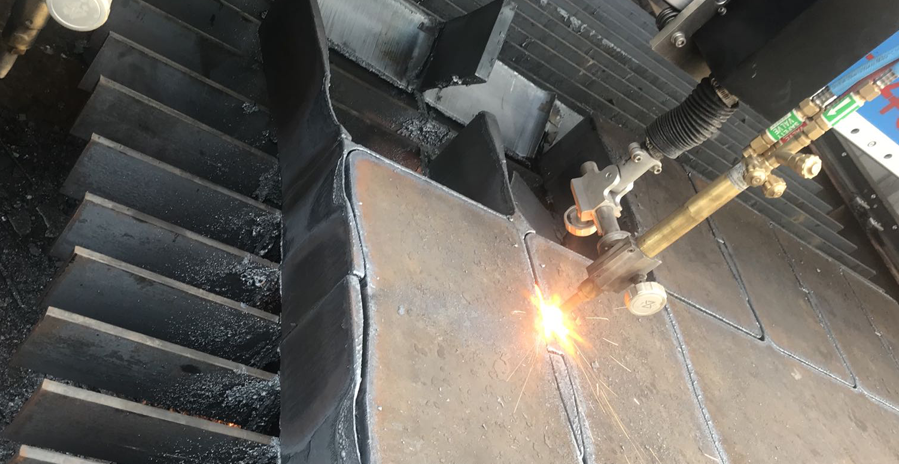

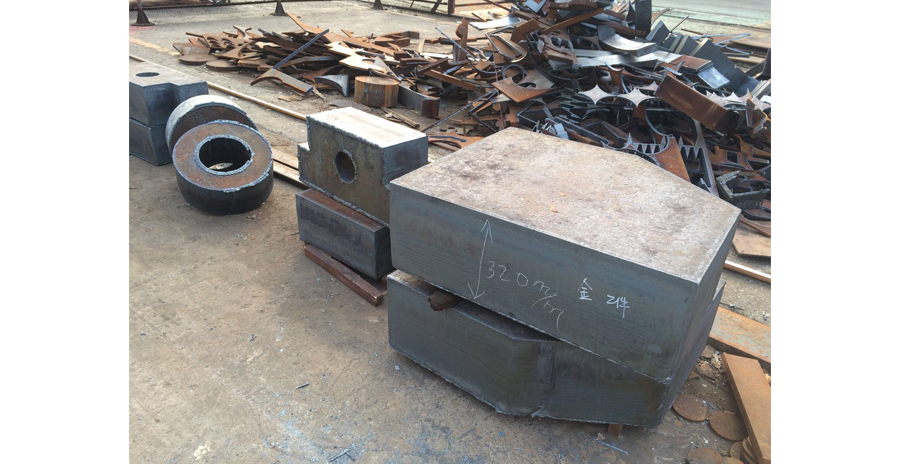

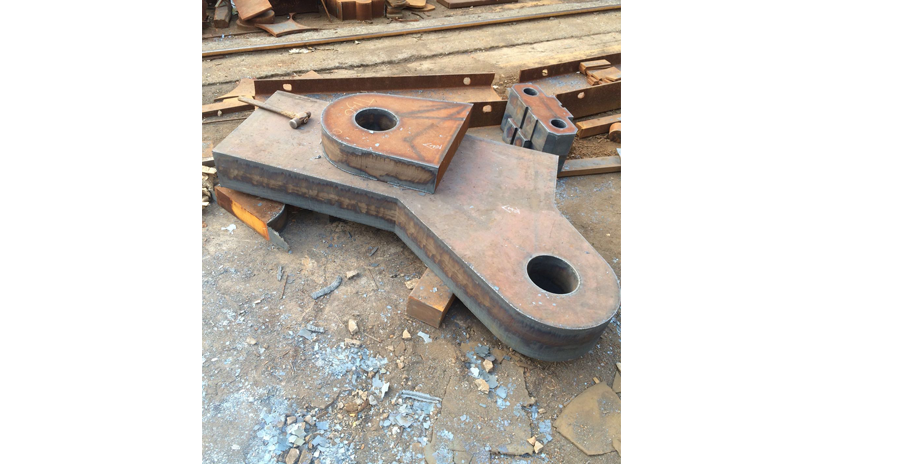

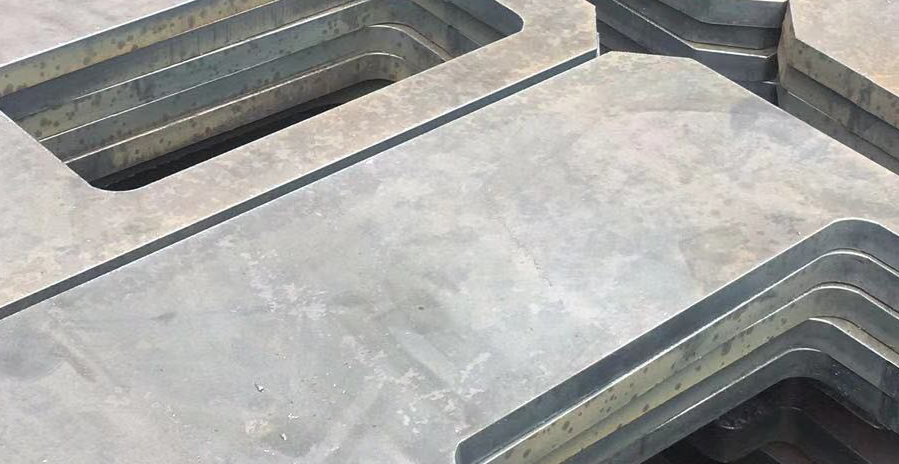

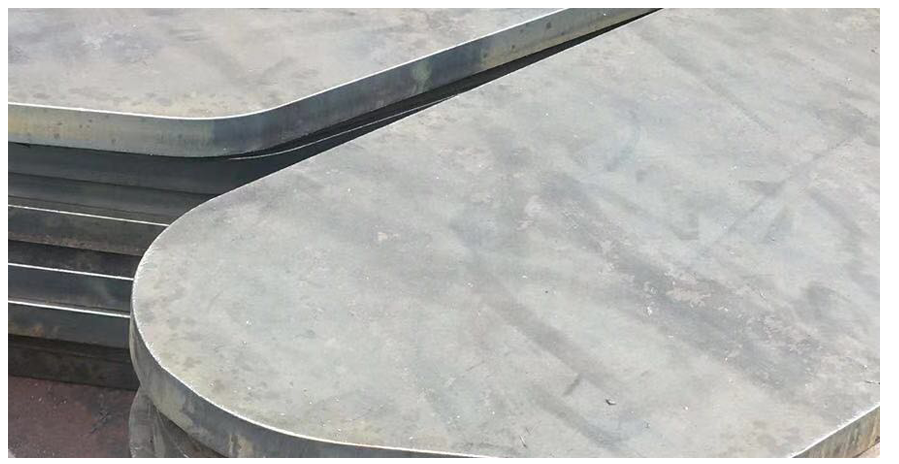

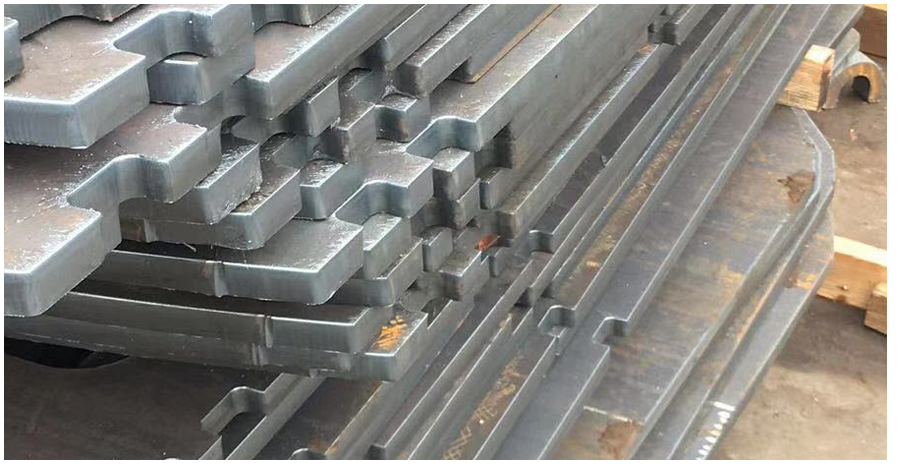

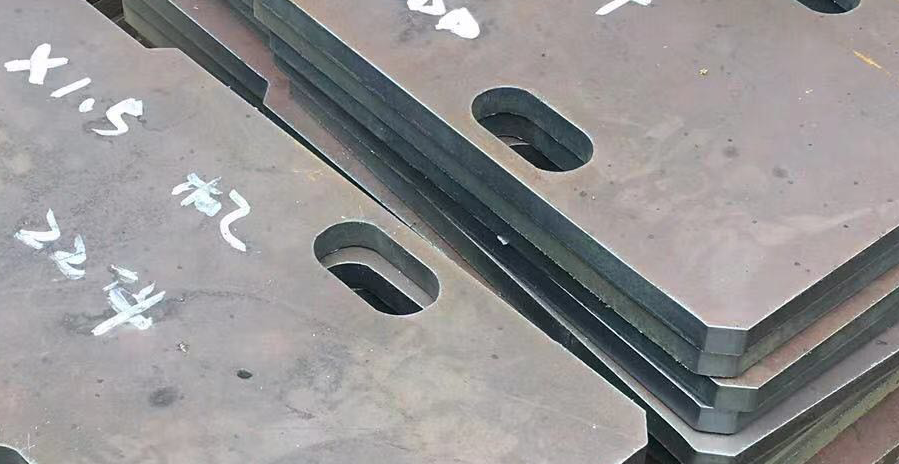

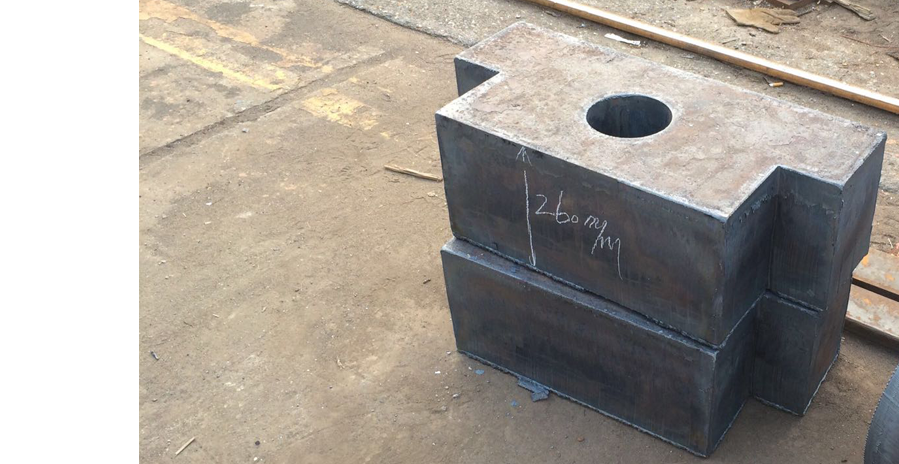

Cutting Figure

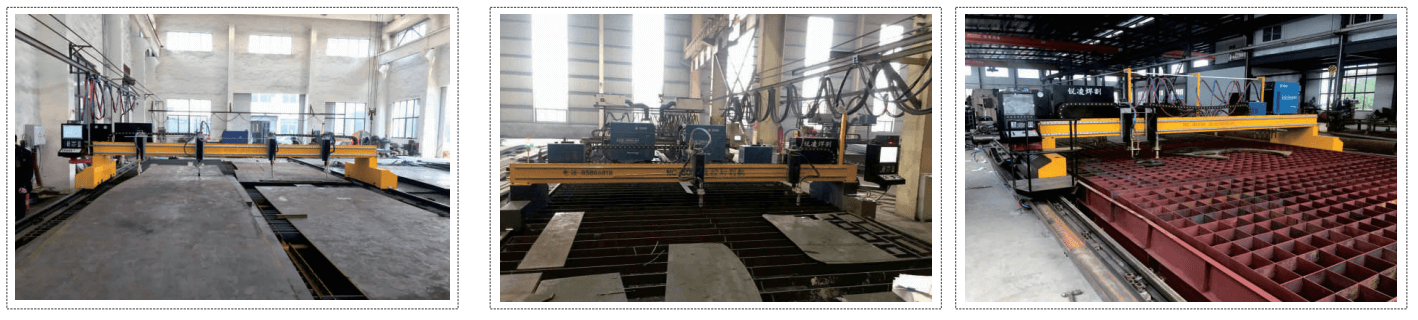

Industry Application
