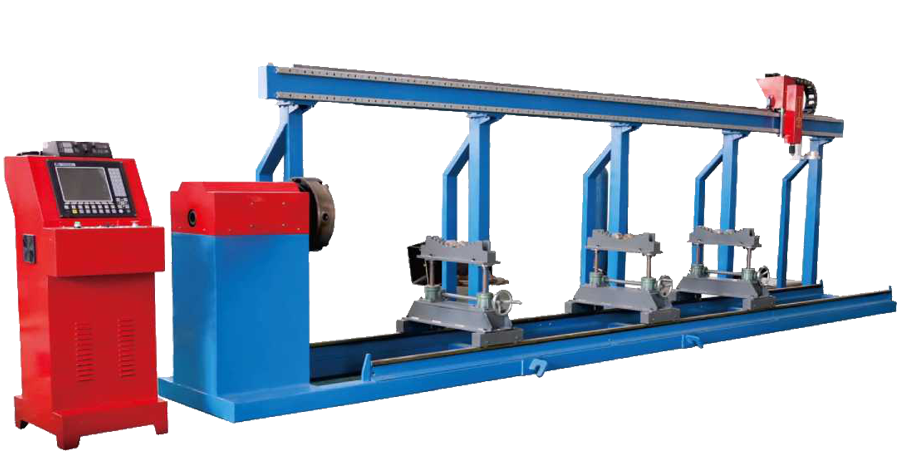

CNC circular pipe intersecting line cutting machine



Product parameter

名称CNC circular pipe intersecting line cutting machine
Type of Chuck motor750wServo motor + reducer
Input VoltageSingle-phase AC 220V
Input PowerAbout 2000W
Cut pipe lengthCustomized according to requirements
Disk SizeΦ250mmΦ250mm + 连接盘
Tube diameterΦ50 ~Φ260mmΦ50 ~Φ500mm
Maximum pipe weight≤1000kg≤1000kg
Custom informationIf you have other requirements of size, weight and pipe, please contact our sales staff. We will provide you with a more comprehensive customized program
Type of cuttingPlasma cutting (need matching plasma power supply) Flame cutting can be replaced by use
Slow down ratio1:175(There may be changes)
Rated rotation speed0-15rpm(Adjusted to actual requirements)
Tube ellipticity≤2%
Number of pipeline supportsSubject to availability
CNC control axis numberFive axis four linkage
Cutting torch lift stroke≤270mm
Operation precision±0.2mm/m
Maximum port follow speed15rmp
Slope precision±1º
Maximum slope angle±60º
Flame Cutting CapacityPiercing capacity: 5-60mm Edge  start cutting: 5-120mm
Plasma Cutting CapacityDepends on the plasma source's cutting capacity
Plasma arc upNot optional
Gas supply requirementsThe maximum acetylene pressure or propane pressure does not exceed the 0.1Mpa
Oxygen  supply requirements Oxygen pressure maximum does not exceed the 0.7Mpa
Cutting tableManufacturer provides drawings, the user makes their own drawings

Cutting Figure

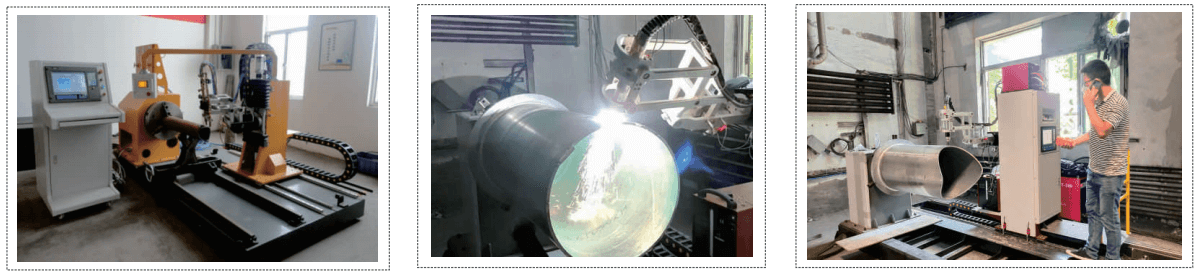

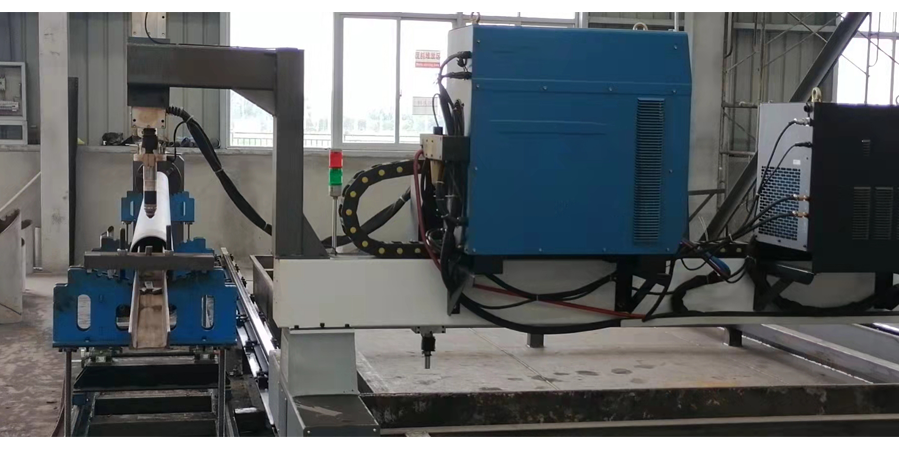

Industry Application
